Mother Hen™

What are Mother Hen’s™ features?

Mother Hen™ is a complete, cloud-orchestrated monitoring system — combining rugged hardware, smart sensors, and AWS-powered intelligence to protect your flock 24/7.

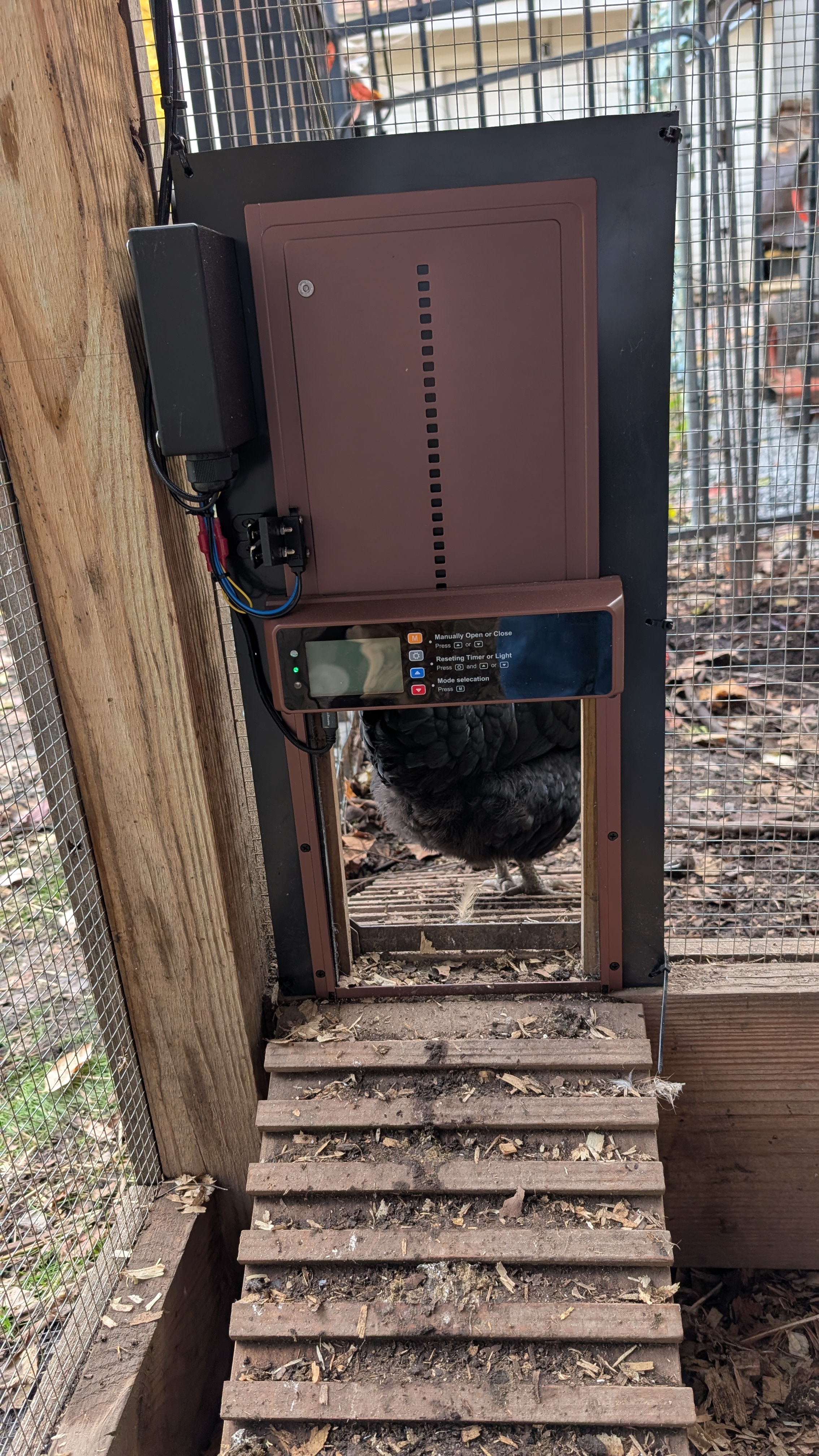

• Bolt-On Door Plate with Built-In Limit Switch
  Pre-wired chicken door sensor — no separate bar. Just 6 bolts and it’s mounted.

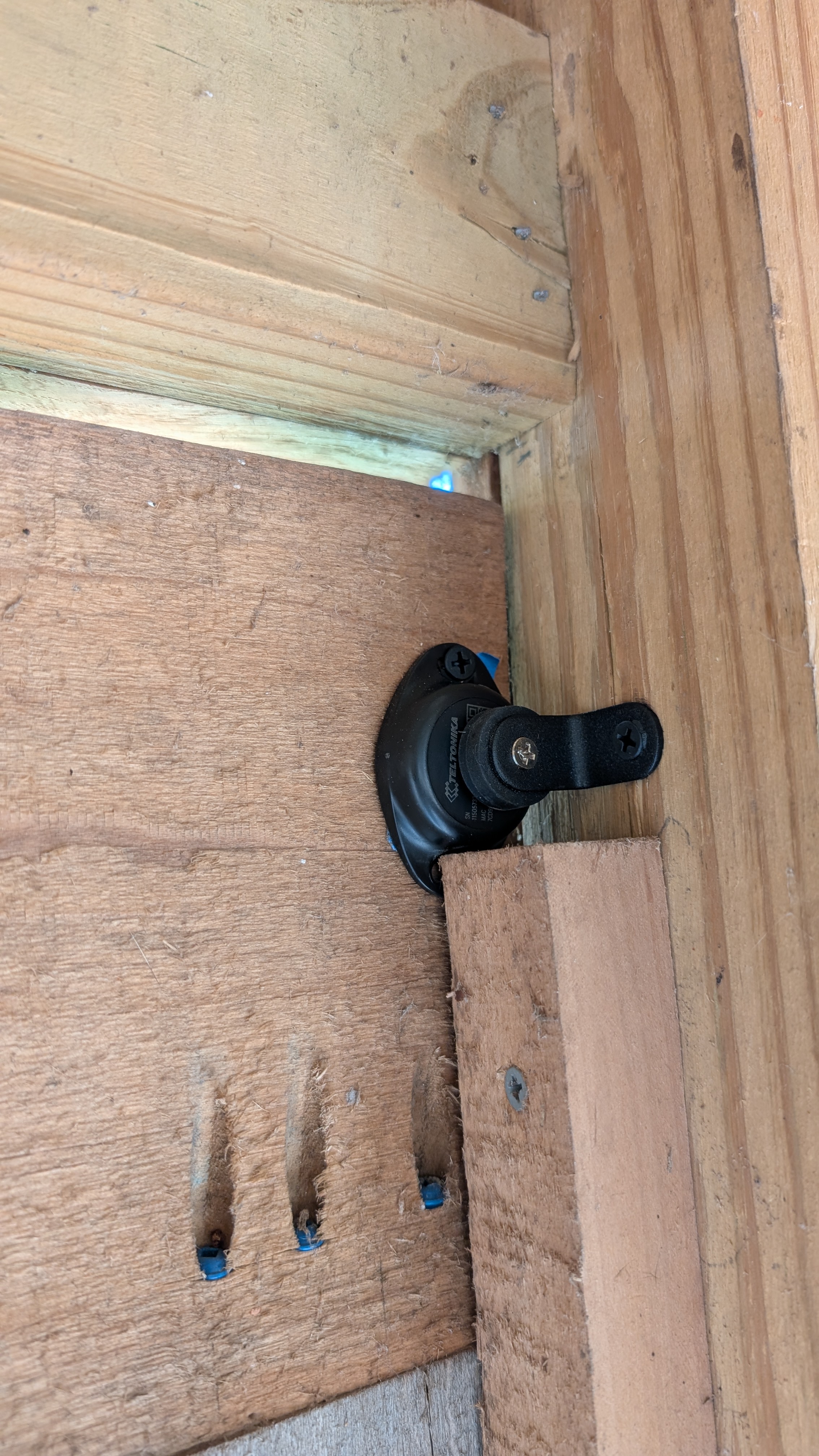

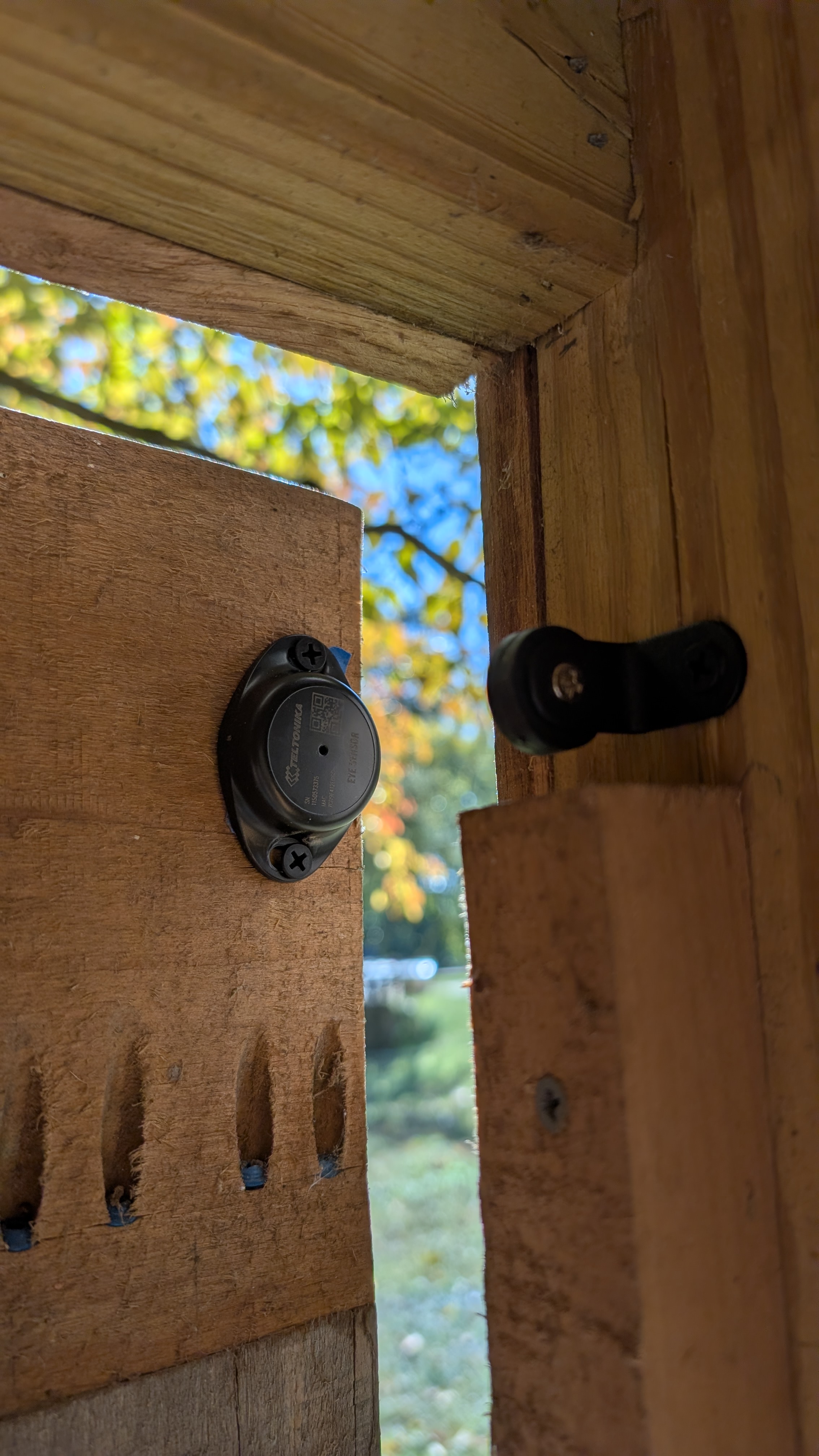

• BTS-MP1 Human Door Sensors (Temp + Magnetic)
  4-screw install. Detects open/ajar + measures coop temperature. Add up to 4+ per coop.

• Walter Cellular Controller (Primary)
  No Wi-Fi needed. Sends SMS anywhere. Antenna included. Rated -20°C to +45°C.
• Wi-Fi Version (Coming)
  Lower-cost ESP32-S3 option for homes with strong 2.4 GHz signal.

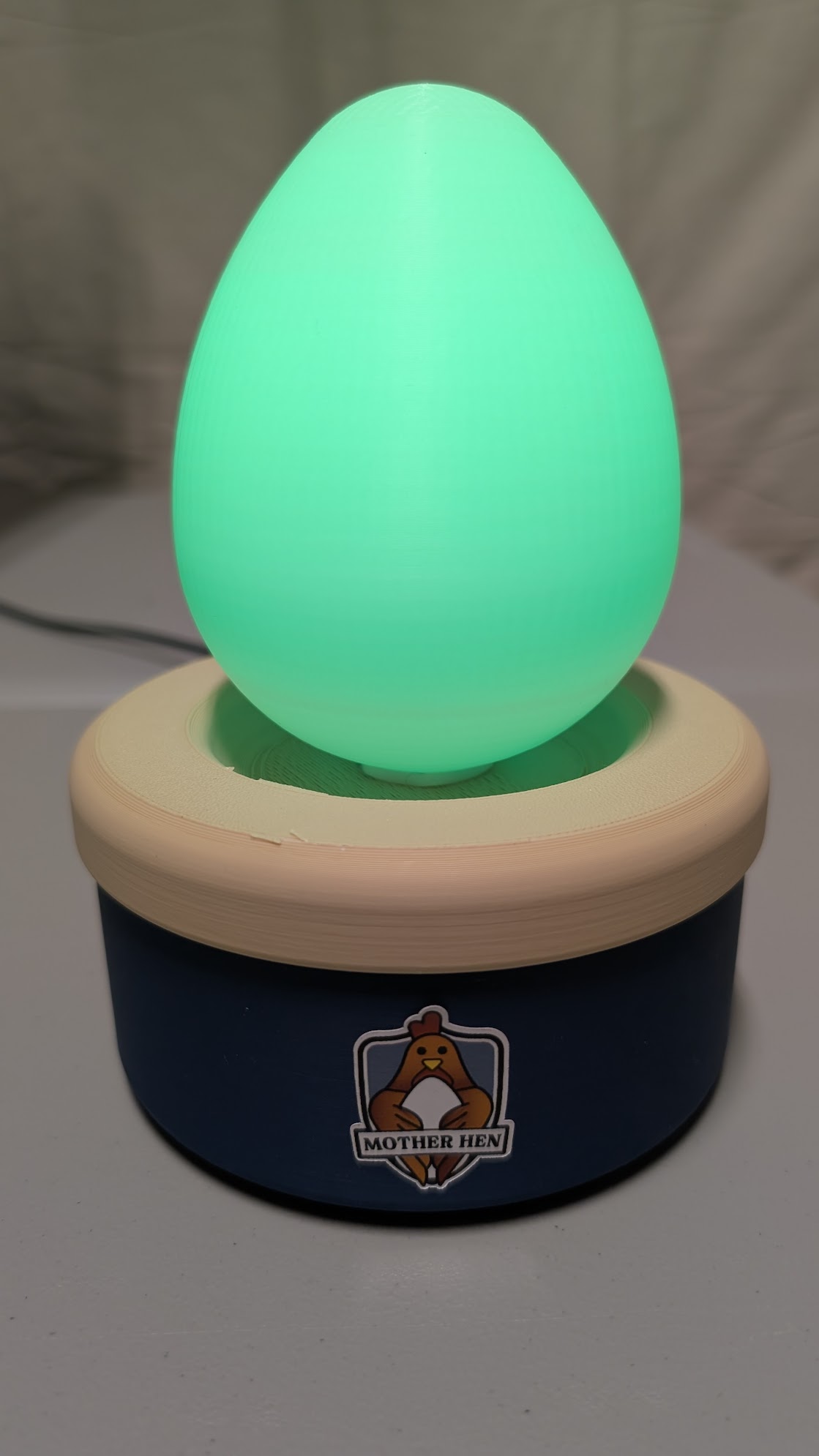

• The Egg — Indoor Alert Beacon
  Wi-Fi, egg-shaped. Green (day), Blue (night), Red Flash + Squawk (problem). Up to 16 per coop.

• Mini-Egg (Optional In-Coop Light)
  Mirrors The Egg. Powered by Controller. Under evaluation for production.

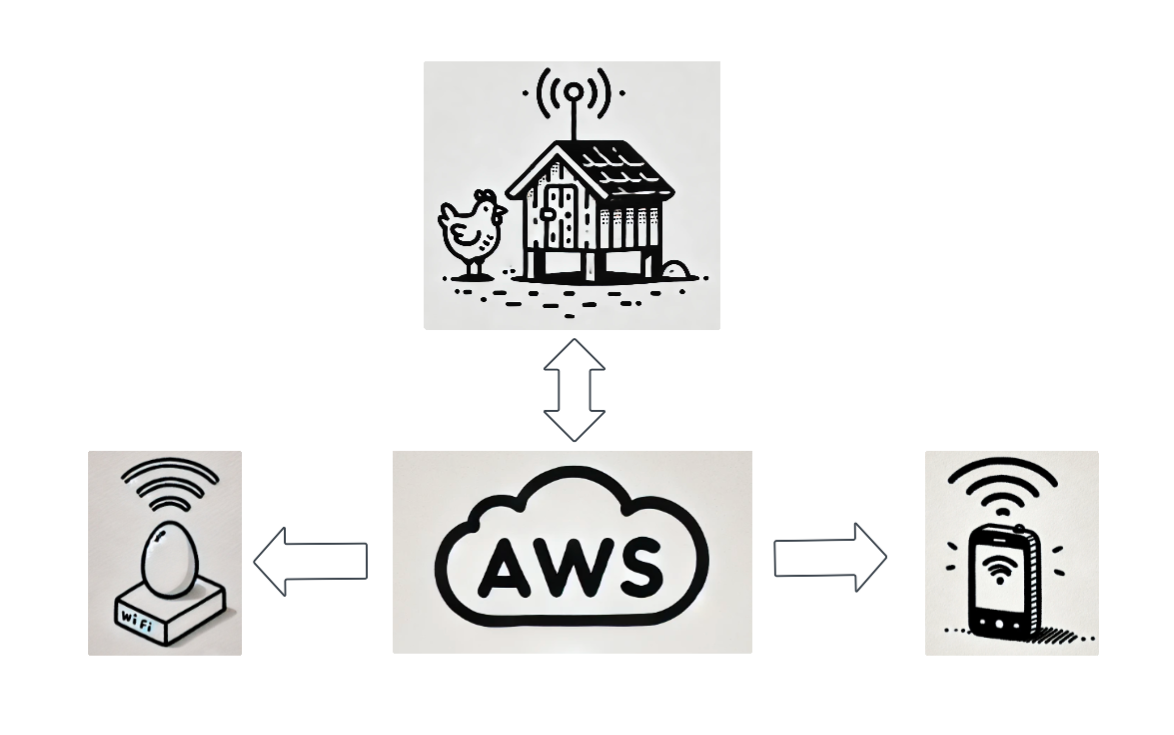

• AWS Cloud Processing (Core Brain)
  All logic, timing, and alerts happen in the cloud:
  • Sunrise/Sunset Calculation — Uses your exact GPS coordinates (e.g., 35.4834°N, 86.4603°W)
  • Alert Orchestration — Sends SMS, updates Eggs, logs events
  • 30-Minute Grace Window — No false alarms from slow doors
  • Data Storage — Long-term temp, door, and humidity trends


• Triple-Redundancy Alerts
  1. Local red flash (coop)
  2. The Egg squawk + flash (home)
  3. SMS to up to 16 phones — all powered by AWS

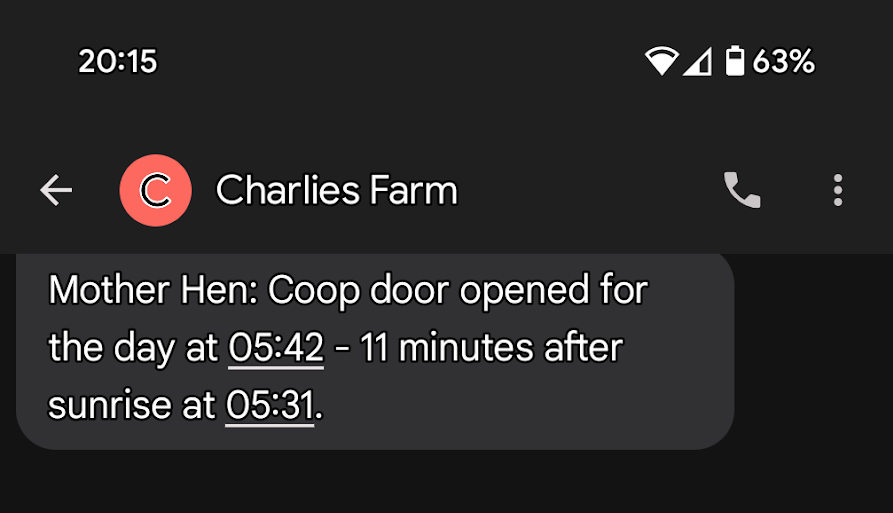

• Daily SMS Confirmations
  “Door opened at 5:18 — 14 min before sunrise”
  “All secure at sunset” — sent from AWS
• Temperature Monitoring
  Frost alert (<30°F), Heat alert (>95°F). Customizable thresholds. Processed in AWS.
• Mother Hen Mobile App (iOS/Android)
  QR → Bluetooth → Wi-Fi setup. Real-time dashboard. Alert toggles. No daily use required.
• Long-Term Data Logging
  Door events, temp, humidity. Future: Hen Health Reports from AWS.
• Customer-Supplied Power
  2 USB ports (door + controller). Use battery, solar, or AC — your choice.
• Extreme Climate Ready
  Walter: -4°F to 113°F. Tested in Tennessee winters. Alaska beta planned.

Hardware collects. AWS thinks. You sleep soundly.

Prototype active in Shelbyville, TN. Join waitlist →
